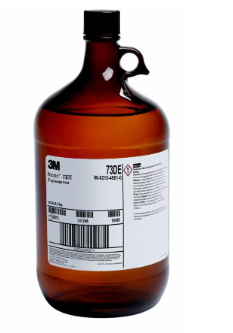

3M™ Novec™ 73DE Engineered Fluid
Details
Highlights
Designed for use in vapor degreasers and immersion cleaning
Cost-effective replacement for nPB, TCE, ozone-depleting HCFCs and high GWP HFCs
Excellent performance with high solvency and low surface tension
Effective in cleaning heavy greases, oils, waxes, silicones and non-polar flux residues
Easy to maintain and use in a vapor degreaser with stable bath composition during extended use
Non-flammable with an excellent safety profile
Environmentally sustainable with low global warming potential (GWP) and zero ozone depletion potential (ODP)
Faster cycle times, lower energy usage and improved cleaning of parts compared to aqueous cleaning
Effective for lubricant deposition applications where increased solvency is desired
EFFICIENT: Its low surface tension allows effective cleaning of heavy greases, non-polar flux residues, oils, and waxes, resulting in fast cycle times and lower energy usage
["Draft bullet 13"]
Ethan bullet test 14
3M™ Novec™ 73DE Engineered Fluid is designed for heavy-duty vapor degreasing, immersion cleaning, or lubricant deposition; featuring high solvency, low surface tension, non-flammability and fluid stability.
Additional Information Novec 73DE fluid is a high performing, cost-effective replacement for n-propyl bromide (nPB or 1-bromopropane), trichloroethylene (TCE), ozone-depleting hydrochlorofluorocarbons (HCFCs) like HCFC-225 (Asahiklin AK-225) and HCFC-141b and high global warming potential (GWP) hydrofluorocarbons (HFCs) for a wide range of cleaning applications. Vapor degreasing with Novec 73DE fluid can also help save you time and money over aqueous cleaning by offering faster cycle times, lower energy usage and improved cleaning of parts with complex geometries.
Typical properties
Application | Cleaning, Immersion Cleaning, Precision Cleaning, Solvent Cleaning, Vapour Degreasing |
Boiling Point (Celsius) | 48 ℃ |
Boiling Point (Fahrenheit) | 118 ℉ |
Brands | Novec™ |
Cleaning Strength | Heavy Duty |
Compatible Fluorochemical | Fluorosilicone, Low Solubility for Fluorochemical Lubricants, Silicone |
Density (Imperial) | 79.908 lb/ft³ |
Density (Metric) | 1.28 g/cm³ |
Dielectric Strength Range | 35 kV - 40 kV |
Factory ISO Certification | No ISO Certification information available |
Fluorocarbon Solubility | Low |
GWP (IPCC 2007) | 47 (100 yr ITH) |
GWP Range | Very Low |
Hydrocarbon Solubility | Very High |
Maximum Use Temperature (Celsius) | 150 ℃ |
Maximum Use Temperature (Fahrenheit) | 302 ℉ |
Net Weight (Imperial) | 10 lb, 50 lb, 550 lb |
Net Weight (Metric) | 4.54 kg, 22.68 kg, 249.48 kg |
Plastic Elastomer Compatibility | Requires Customer Testing |
Pour Point (Celsius) | -10 ℃ |
Pour Point (Fahrenheit) | 14 ℉ |
Product Series | Novec 73DE |
Product Usage | Deposition Solvent |
Replacement For | HCFCs, HFCs, TCE, nPB |
Substrate | Silicone, Solvent-resistant Plastic |
Volume (Imperial) | 1 gal, 5 gal, 55 gal |
Volume (Metric) | 3.79 L, 18.93 L, 208.2 L |
eClass 14 Classification Group | 23060490 |
