3M™ Novec™ 7100 Engineered Fluid-Shanghai Richem Envirotech Co., Ltd.

3M™ Novec™ 7100 Engineered Fluid No.3M™ Novec™ 7100 Engineered Fluid

Detailed

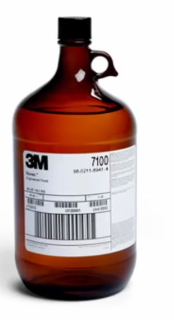

3M™ Novec™ 7100 Engineered Fluid

Details

Highlights

Non-flammable
Non-conductive
Compatible with plastics
Low toxicity
Low global warming potential (GWP)
Zero ozone depletion potential (ODP)
VOC-exempt solvent (US EPA)
Low surface tension penetrates tight spaces for improved cleaning

3M™ Novec™ 7100 Engineered Fluid is a proprietary hydrofluoroether (HFE) with unique properties that make it ideal for a broad range of applications and industries, from thermal management in semiconductor fabrication, to immersion cooling in data centers, to solvent cleaning and aerosol formulations. It's non-flammable, has low toxicity, and has a low global warming potential and zero ozone depletion potential, in addition to powerful thermal heat transfer and solvent cleaning performance.

Typical properties

Application	Aerosol Formulations, Cleaning, Data Center Cooling, Deposition Solvent, Document Preservation, Electronic Cooling, Heat Transfer, Immersion Cooling for Data Centers, Organic Rankine Cycle, Oxygen System Cleaning, Precision Cleaning, Preservation for Biological Specimens, Rinsing, Solvent Cleaning
Boiling Point (Celsius)	61 ℃
Boiling Point (Fahrenheit)	142 ℉
Brands	Novec™
Cleaning Strength	Light Duty
Dielectric Strength Range	>25 kV
Factory ISO Certification	No ISO Certification information available
Fluorocarbon Solubility	High
GWP (IPCC 2007)	297 (100 yr ITH)
GWP Range	Low
Hydrocarbon Solubility	Medium
Maximum Use Temperature (Celsius)	150 ℃
Maximum Use Temperature (Fahrenheit)	302 ℉
Net Weight (Imperial)	12 lb, 33 lb, 600 lb
Net Weight (Metric)	5.44 kg, 14.97 kg, 272 kg
Plastic Elastomer Compatibility	Excellent
Pour Point (Celsius)	-135 ℃
Pour Point (Fahrenheit)	-211 ℉
Product Series	Novec 7100
Replacement For	CFCs, HCFCs, HFCs, PFCs
Volume (Imperial)	1 gal, 3.25 gal, 55 gal
Volume (Metric)	3.79 L, 12.3 L, 250.035 L
